RGB LED Touch Controller for the wall

Out of stock
The quantity of 'RGB LED Touch Controller for the wall' exceeds our current stock level. For this reason, your order may take more time to process.
Ordered before counting..., delivered tomorrow
Article code LED06039
Product information

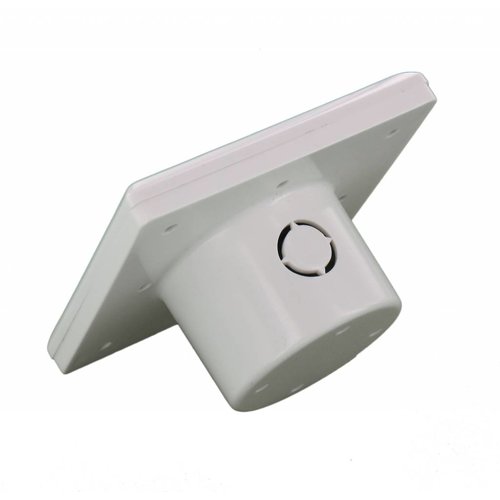

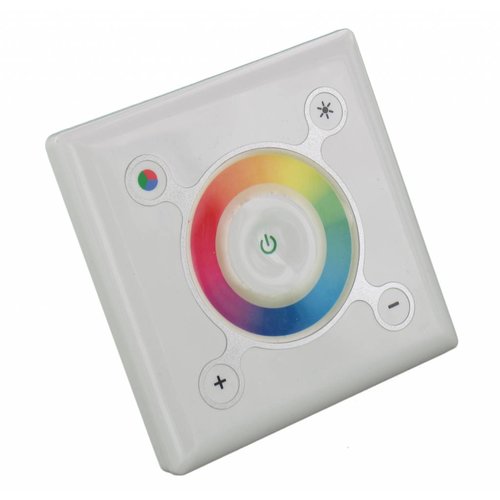

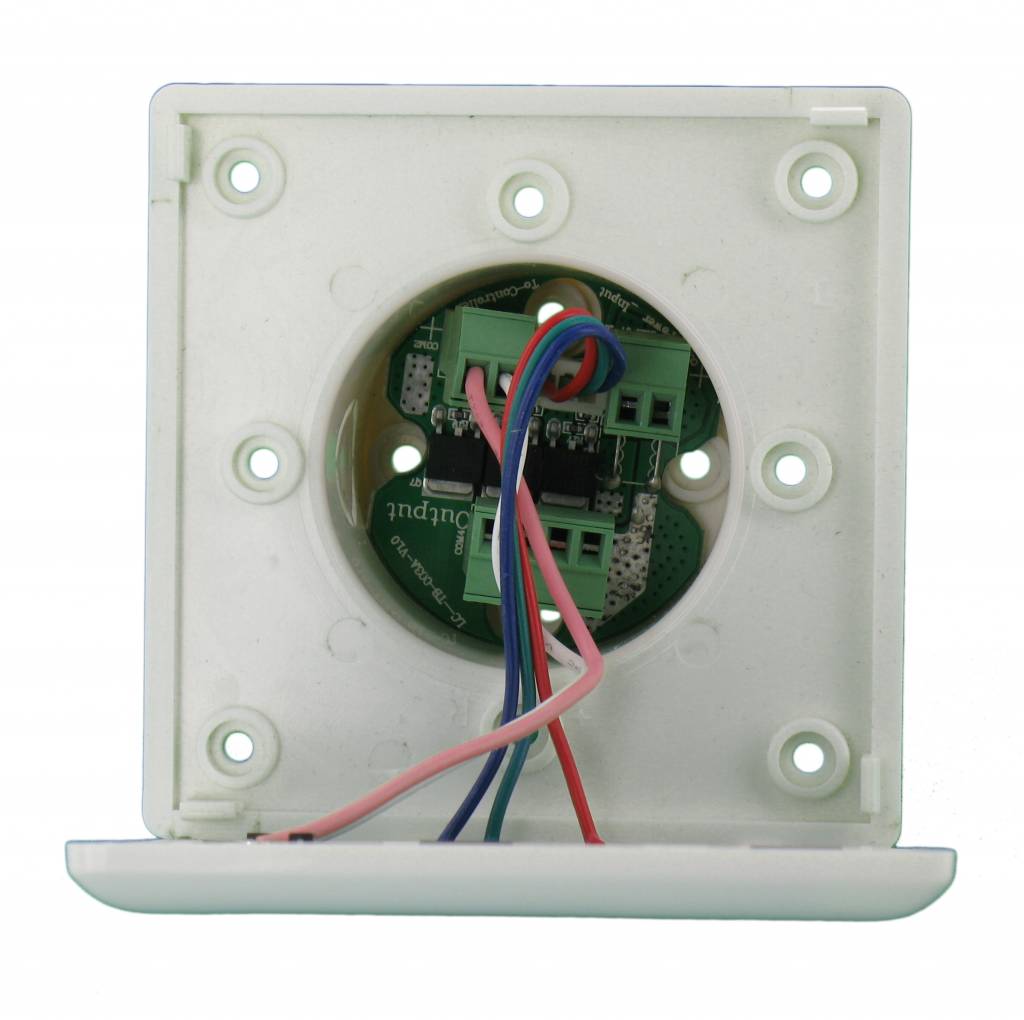

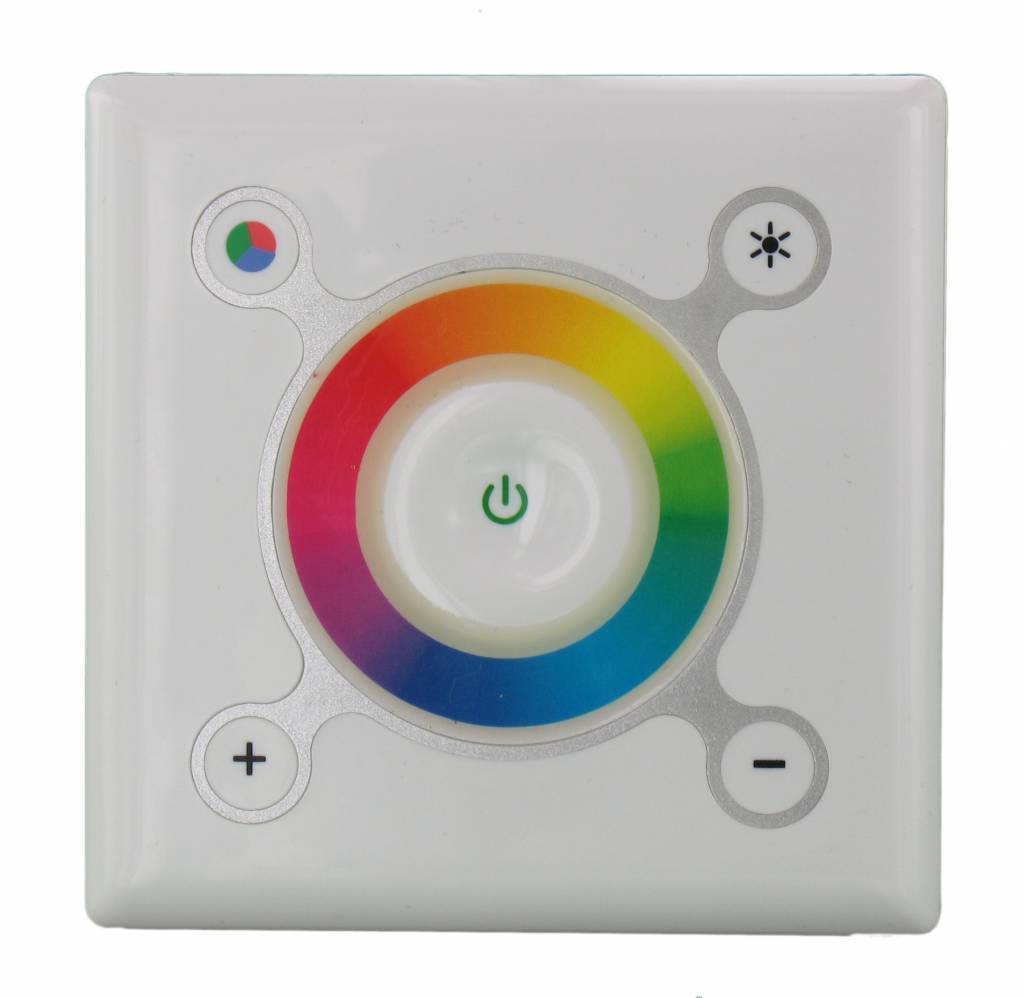

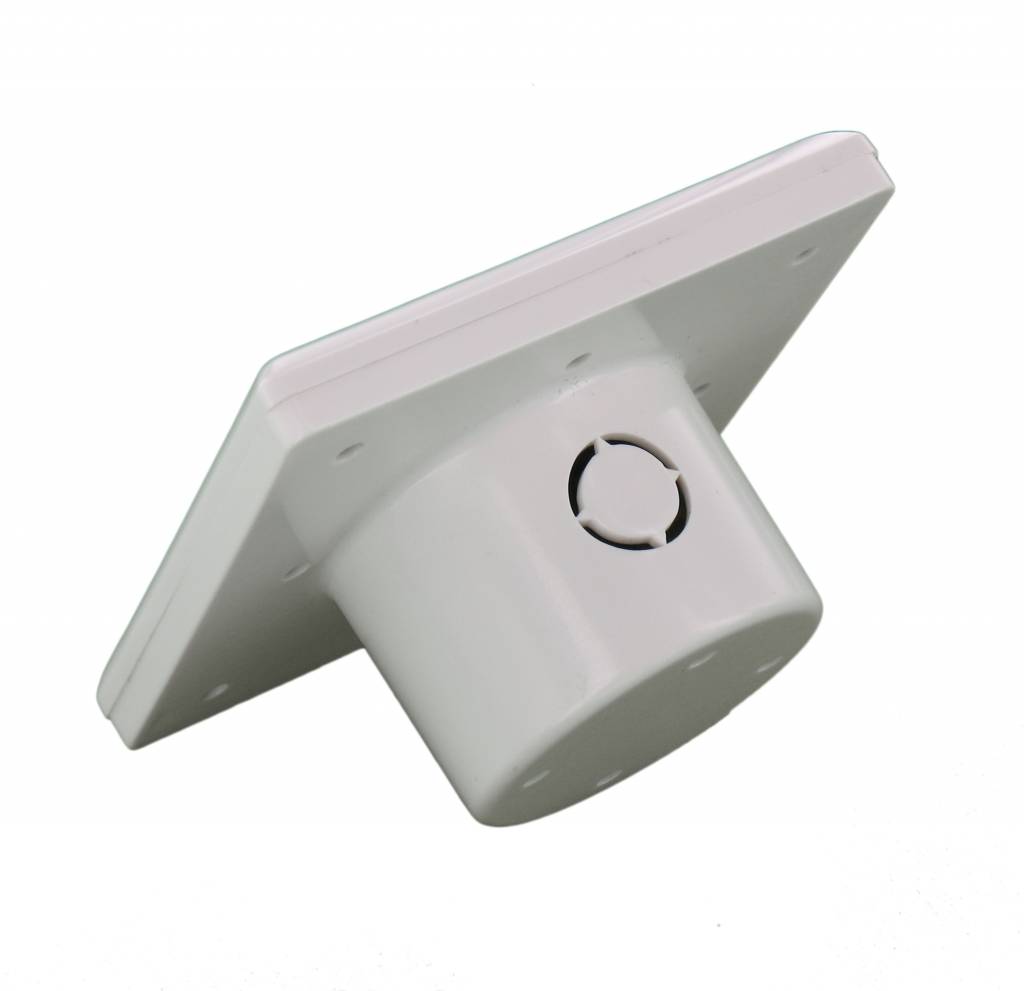

RGB LED Touch Controller for the wall

It is ideal for installation in the wall! The dimensions fit exactly installationbox a 86x86mm.
This touch controller has 16 different patterns.

Suitable for both 30 and 60 LEDs per meter RGB LED Strip

Dimming, controlling speed, on and off, and more!

Model Number: LC-OrgB-D5-05

Functions
1. 16 different patterns.
2. Static light adjustability, dynamic speed adjustment.
3. Memory.
4. Touch operation.

technical specifications:
Working temperature -20 To +60 degrees Celsius
Dimension Controller 86 x 86 x 47 mm
Input Voltage 12-24 Volt
Output Voltage 12-24 Volt
Output 108 watts per color channel 3A (12V) 216W 3A per color channel (24V)
Connection Mode Common Anode

Includes mounting screws and an English-speaking guide.
