LED Infrared Surface Controller with Remote Control
This build infra red remote control for LED Strips fits on installation box of 88 x 88 mm.

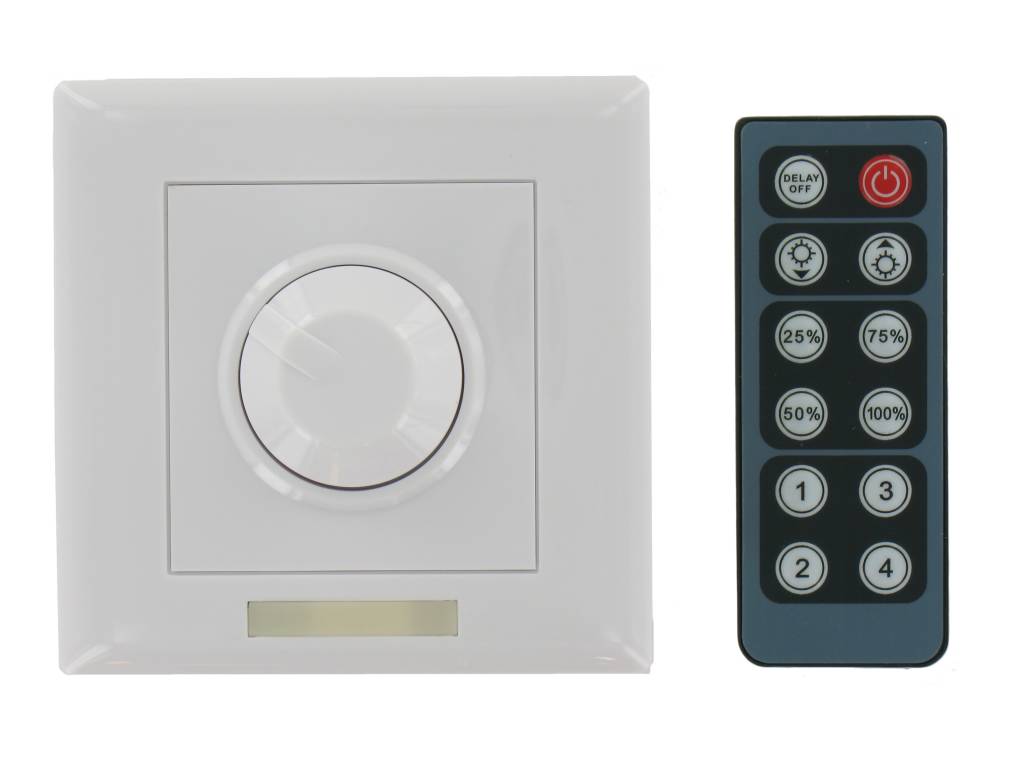

This controller can be controlled. Both with the dial on the controller itself and the remote Features:
- On / Or turn on /.
- Delay off: the dimmer switches off after 30 seconds.
- Brightness + / -: Step-wise dimming.
- 25/50/75/100% buttons: directly to the desired dimming level.
- 1 2 3 and 4 buttons: Save your own desired dimming level up.
| Working temperature || -20 To +60 degrees Celsius |
| Input Voltage || 12-24 Volt DC |
| Dimension Controller || 88 mm long, 88 mm wide, 41 mm thick |
| Max. output || 8 Ampere |
| Dimensions Remote || 86 mm x 32 mm x 6mm |
| Control Type || Infra-red |
| Remote control range || 5-10 meters |

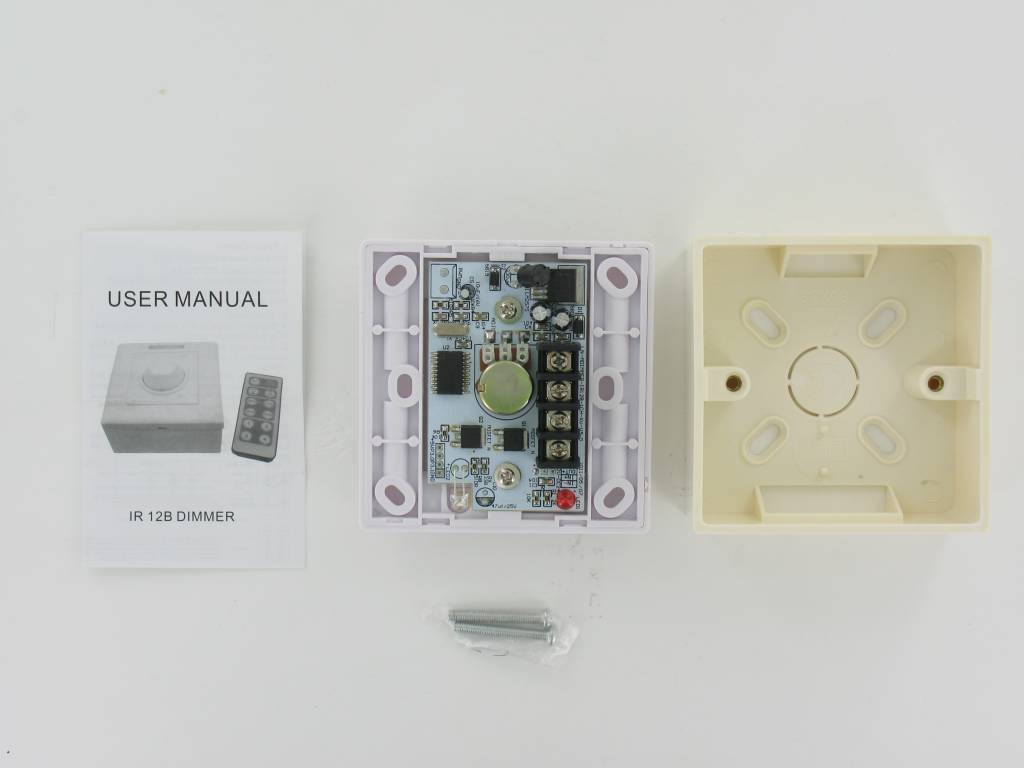

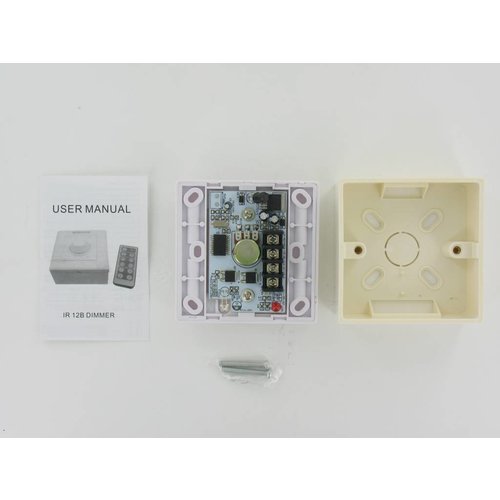

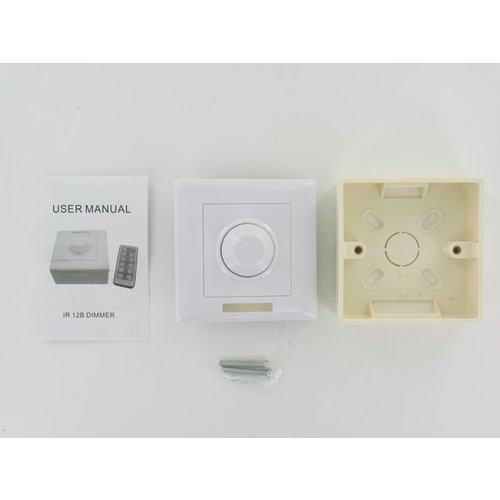

Includes concise english manual
